MFK MODEL COOLING TOWERS

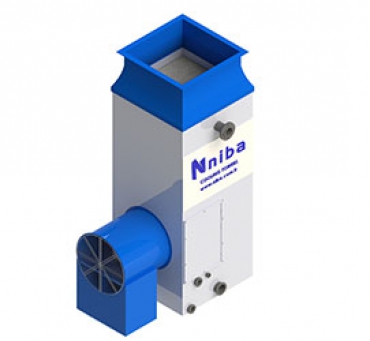

MFK 3X3
MFK 3X3
  • Width: 900 mm
  • Length: 900 mm
  • Height: 2450 mm
  • Dry Tower Weight: 160 kg
  • Working Tower Weight: 420 kg
  • Nominal Motor Power: 1.1 kW
  • Capacity (40/30/24 °C – : 110.000 kcal/h (127 kW)
  • Capacity (35/30/25 °C – : 75.000 kcal/h (87 kW)

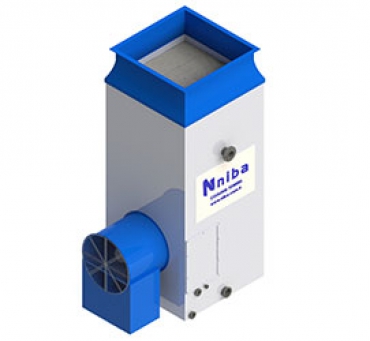

MFK 4X4
MFK 4X4
  • Width: 1200 mm
  • Length: 1200 mm
  • Height: 2850 mm
  • Dry Tower Weight: 210 kg
  • Working Tower Weight: 650 kg
  • Nominal Motor Power: 2.2 kW
  • Capacity (40/30/24 °C – : 200.000 kcal/h (232 kW)
  • Capacity (35/30/25 °C – : 135.000 kcal/h (157 kW)

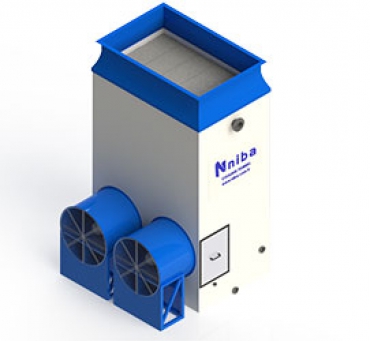

MFK 4X6
MFK 4X6
  • Width: 1200 mm
  • Length: 1800 mm
  • Height: 2850 mm
  • Dry Tower Weight: 305 kg
  • Working Tower Weight: 1060 kg
  • Nominal Motor Power: 2 X 1.5 kW
  • Capacity (40/30/24 °C – : 300.000 kcal/h (348 kW)
  • Capacity (35/30/25 °C – : 200.000 kcal/h (232 kW)
MFK 6X6
MFK 6X6
  • Width: 1800 mm
  • Length: 1800 mm
  • Height: 3050 mm
  • Dry Tower Weight: 400 kg
  • Working Tower Weight: 1540 kg
  • Nominal Motor Power: 2 X 2.2 kW
  • Capacity (40/30/24 °C –: 460.000 kcal/h (534 kW)
  • Capacity (35/30/25 °C – : 300.000 kcal/h (348 kW)

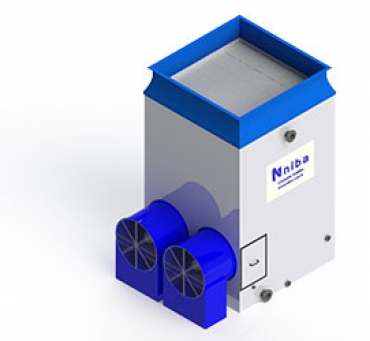

MFK 6X8
MFK 6X8
  • Width: 1800 mm
  • Length: 2100 mm
  • Height: 3050 mm
  • Dry Tower Weight: 550 kg
  • Working Tower Weight: 2060 kg
  • Nominal Motor Power: 2 X 3 kW
  • Capacity (40/30/24 °C – : 650.000 kcal/h (755 kW)
  • Capacity (35/30/25 °C –: 415.000 kcal/h (482 kW)

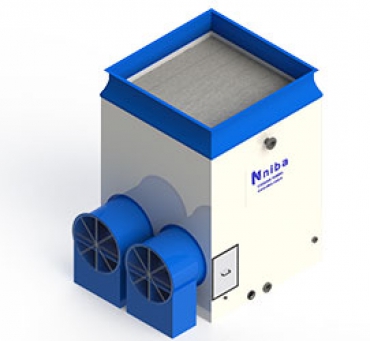

MFK 8X8
MFK 8X8
  • Width: 2100 mm
  • Length: 2100 mm
  • Height: 3050 mm
  • Dry Tower Weight: 740 kg
  • Working Tower Weight: 2750 kg
  • Nominal Motor Power: 2 X 4 kW
  • Capacity (40/30/24 °C – : 760.000 kcal/h (883 kW)
  • Capacity (35/30/25 °C –: 500.000 kcal/h (581 kW)

MFK (Side Fan) Cooling Towers


Designed for smaller capacities, MFK model cooling towers are designed to provide optimum cooling. In MFK model towers, the fan is placed next to the tower.

Fan blades are made of PPG / PAG material and axial. As the fans are next to the tower, this fan group has ease of operation and maintenance.

MFK model towers are counter flow and forced drive. One motor and fan is used in MFK (3x3) and MFK (4x4) model cooling towers. In other MFK models, two motors and fans are used.

Body panels used in tower construction are manufactured from FRP (Glass Reinforced Polyester) plates and are resistant to corrosion and have a very long service life. The inner and outer surface of the tower; It is a “Gel-Coat” material colored with polyester-based pigments, resistant to all weather conditions and UV rays, does not fade, do not deteriorate, does not require aesthetics and paint.
